DRUMFILTER

The drumfilter is the center of the holistic InBlue concept. It is not about being a better filter in terms of direct particle filtration performance. It is about delivering the best total water and air quality in an environmentally responsible way. The first of two main advantages are super low water and energy consumption due to gravity operation. The second is that particles are filtered out constantly instead of being dissolved by chlorine and hot water staying for days and weeks in sand and precoat filters. If particles dissolve, they will be chlorinated and contribute to the harmful chlorine by-products. On the positive is also that balance tanks are clean, no cleaning required, and that no prefilters are needed before the main pumps.

The drumfilter is installed directly after the gutter to catch skin cells and other particles before the balance tank, pumps, and other handling that causes dissolving. It is not using any energy under filtration, only during flush. A flush takes around 10 seconds, the interval between flushes is automatic based on bather load, i.e. the water level rise inside the drum due to clogging. The filter operates on gravity with head around 0,3meter. The drumfilters are available in various sizes which allows for optimal adaptation to custom filtration requirements.

The gravity operated inBlue drumfilter uses a factor 10 to 100 less energy than conventional sand or DE filters. Since only a fraction of the water needs to be filtered by sand or DE filters, the overall energy consumption decreases drastically. Most of the water simply can be pumped directly back into the pool from the balance tank. Sand or DE filters, which are traditionally used in pools, operate with a pressure drop when backwashed from 1 to 3 meters plus a typical differential pressure of 2 to 10 meters. The inBlue drumfilter on the other hand operates with a pressure drop when backwashed from only 0.1 to 0.2 meters plus a typical differential pressure of 0.2 to 0.3 meters.

Download brochure

Key highlights

  • Particles wont dissolve staying for weeks in heated, chlorinated, turbulent sandfilters/DE
  • Less chlorine byproducts since particles is out of water stream before dissolving
  • Removes particles in concentrated stream with short intervals
  • Operates by gravitation, no pump pressure needed
  • Super low head loss < 40 cm (1,3 ft)
  • No need for filters before pumps
  • No need for regular cleaning of tanks

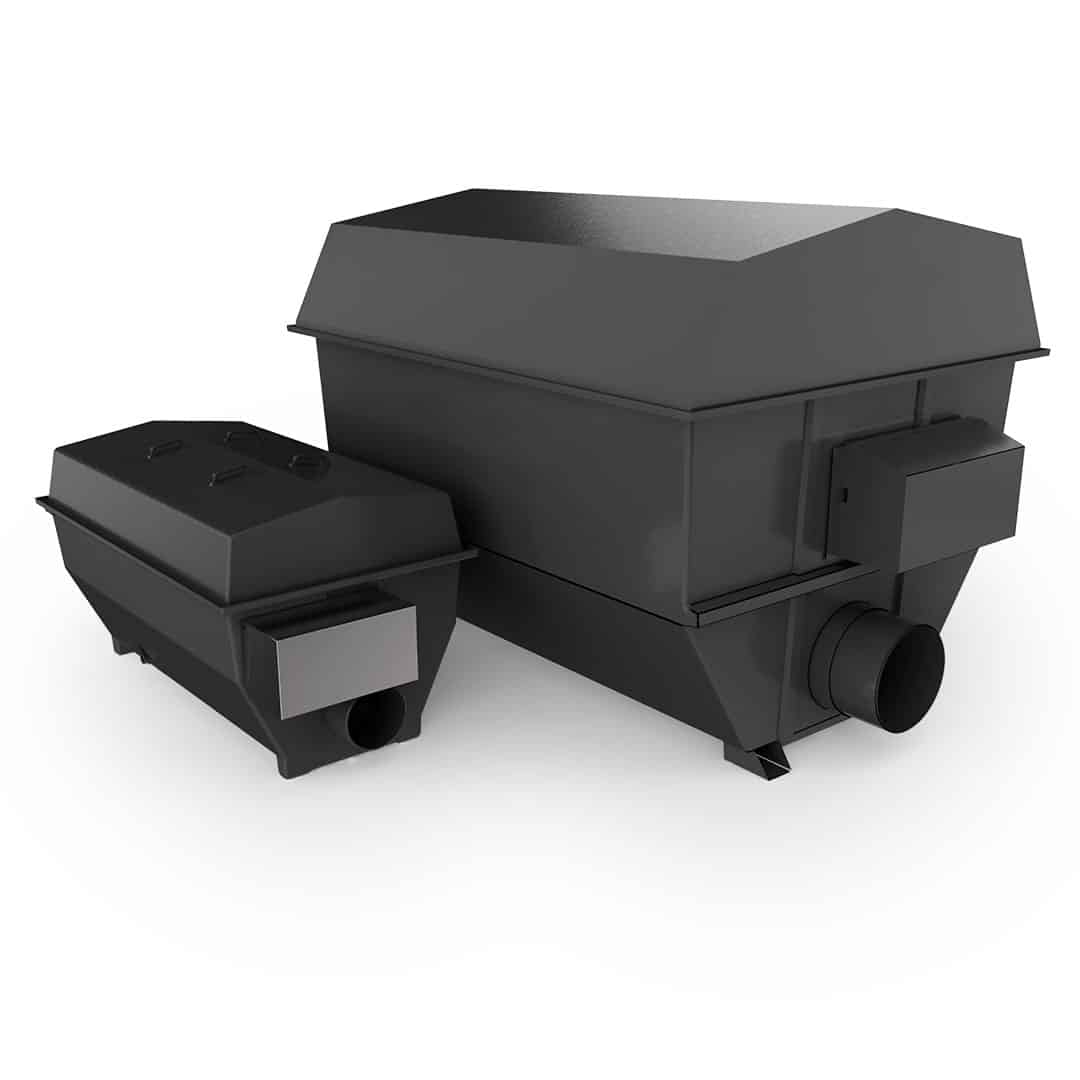

Ultraaqau Drumfilter

Drumfilter setup includes control cabinet, pump and drainpipes

drum filter dimensions are calculated in relation to the given requirements

Lightweight plastic lid easy to open and remove – hydraulically operated on larger models

Drumfilter Filter operation results in a dramatic decrease in pressure drop for substantial energy savings

ULTRAAQUA SUB5™ SCREEN TECHNOLOGY

The rinsing sequence starts automatically after a pre-programmed interval or when needed

High pressure nozzles removes particles in concentrated stream with short intervals

Reduces backwash water consumption by apx. 50%

Reduces energy consumption by apx. 50%

The rinsing sequence starts automatically after a pre-programmed interval or when needed

The rinsing sequence starts automatically after a pre-programmed interval or when needed

Removes particles in concentrated stream with short intervals

Hair, skin cells and other particles are disposed of in the sewer in a concentrated stream

The InBlue solution

The inBlue solution is a revolutionary way of improving the water and air quality in swimming pools while reducing energy and water consumption. Hundreds of individually optimized aspects are combined to achieve a “no by-product” goal. Learn how it works by clicking the button below.

Learn more
